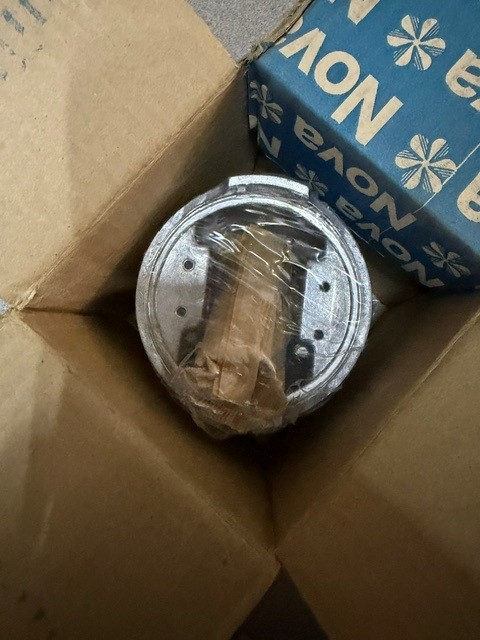

4712886 PISTON SET (KIT OF 4) – IVECO 8025 / FIAT TRACTOR

Genuine type heavy-duty diesel engine piston kit (Set of 4 pieces) matching OEM reference number 4712886.

Engineered for industrial, agricultural, and commercial machinery utilizing IVECO 8025 series engines, FIAT tractors, and New Holland machinery.

Technical Dimensions:
• Cylinder Bore Diameter: 100.00 mm
• Total Piston Length: 101.20 mm
• Compression Height: 59.65 mm
• Piston Pin (Bolt): 32.00 mm x 84.00 mm
• Combustion Cavity: 47.10 mm (Diameter) x 23.70 mm (Depth)

Interchangeable Cross-References:
• FIAT / IVECO: 4712886, 1908744, 2996857, 4675490, 1901132, 1901134
• MAHLE: 007 97 00
• Kolbenschmidt: 93380600

• Engine Model Compatibility: IVECO 8025.02, IVECO 8035.02, IVECO 8045.02, FIAT 8025 series.
• Equivalent Piston Ring Sets: Goetze 08-306400-00, Mahle 007 97 N0, Kolbenschmidt 800001241000.
• Matching Cylinder Liner / Sleeve OEM: FIAT 4758784, IVECO 1907767, Tarabusi 16301.
• Associated Connecting Rod Bearings: FIAT 1901610, IVECO 2996535.

Stock status: 1 complete engine set (4 units) available in our Kaimakli warehouse.

For immediate stock verification or shipping quotes across Cyprus, please contact us directly.
