Description

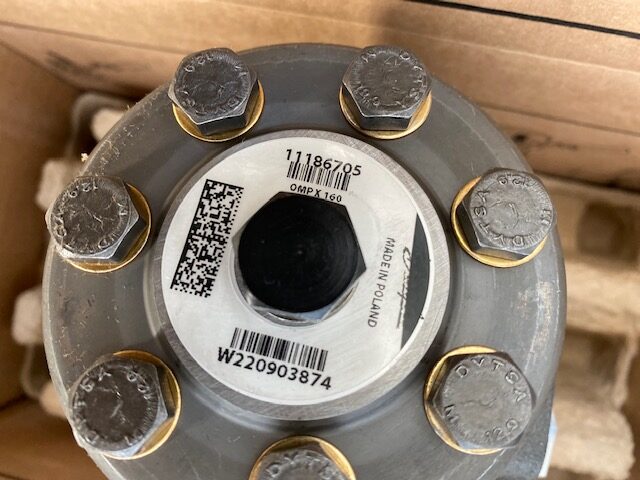

WHITE DRIVE HYDRAULIC MOTOR

OMP X 160
11186705
A: Main motor family OMPX OMP X Motor
B: Displacement 160 160 ccm/rev.
C: Motor types NNN Standard motor
D: Mounting Type A2-flange Pilot dia. 82.5 x 8 mm [3.25 x 0.32 in] ; B.C. dia. 106.4 mm[4.20 in]
E: Port type Side port – Offset
F: Thread Main ports A3 G 1/2
G: Shafts Cyl 25mm with straight key ; M8 thread in shaft end
H: Shaft Seal High Pressure Shaft seal – NBR
J: Dust Seal Integrated in shaft seal
K: Drain Port G1/4
L: Check Valve Yes
M: Brake release port None
N: Speed sensor None
P: Paint No Paint
R: Valve option None
S: Spec feature visible None
T: Spec feature non visible NNN
U: Packaging Single pack
V: Name tags – Motor and Box NN
