| Displacement | 017 | Displacement 17cc | Displacement 17 cc |
| Slash separator | / | Slash | |
| O-Ring, Inside Diameter | / | Slash | |
| Drive gear | BA | Taper 1:8-M12x1,25-Key=4 | Taper 1:8 – M12 x 1,25 – Key = 4 CO01 |
| Inlet size | C7 | 20x40xM8 | 20x40xM8 |
| Mark position | N | Std on top-drive gear side | Position Marking standard (on the top in relation to drive gear) |
| Mark type | N | Std Marking | Standard Marking |
| Mounting flange | 01 | Pilot D36,5 + 4 holes x bolts | Flange with pilot Ø36,5 mm and 4 holes for bolts |
| Outlet size | C3 | 13,5x30xM6 | 13,5x30xM6 |
| Ports position | NN | Standard from catalogue | Standard from catalogue |
| Project version | N | Standard Version of Project | Standard Version of Project |
| Rear cover | P1 | Standard cover for pump | Standard cover for pump |
| Rotation | R | Right rotation | Product with clockwise rotation |
| Screws | N | Screws standard | Screws standard |
| Seals | N | Standard seal | Standard seal |
| Single Stage Family | SKP2NN | Gr2 Hi.Torque Pump | |
| Valve setting | NNN | without setting | without setting |
Hydraulic Pumps & Motors
GEAR PUMP GR2 FIXED DISPL
Original price was: 262,00 €.235,00 €Current price is: 235,00 €. 235,00 €
GEAR PUMP GR2 FIXED DISPL
11270707
Model code:SKP2NN-/-017-R-N-01-BA-P1-C7-C3-NN-N-N-/-NNN-N-N

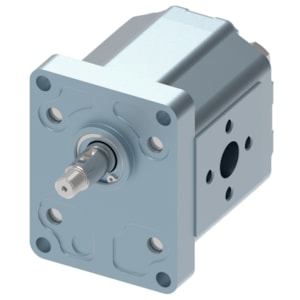

Picture is not actual.
Availability: 1 in stock
| Weight | 3 kg |
|---|
